Playroom Floor Tiles XT "Embers"
- /
-
Ready to ship
in approx. 3-4 weeks – production yet to start - £81.91 / 5.03 Piece / m²
- (2.86 kg / Piece)
EAN: 4251469367555 | Item no.: 6755

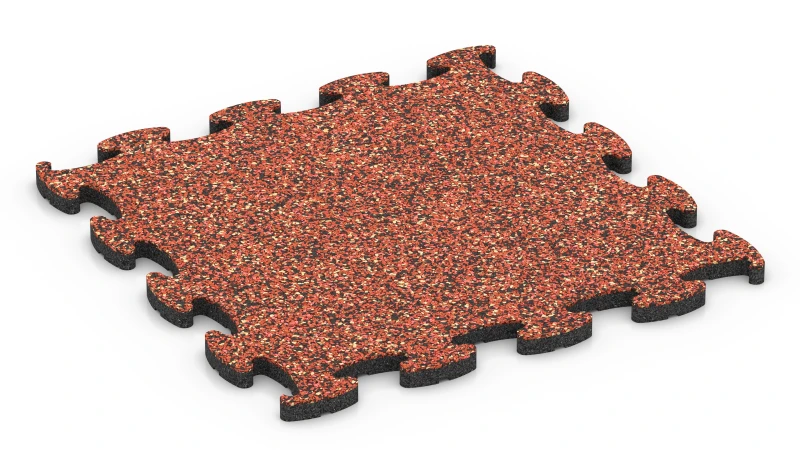

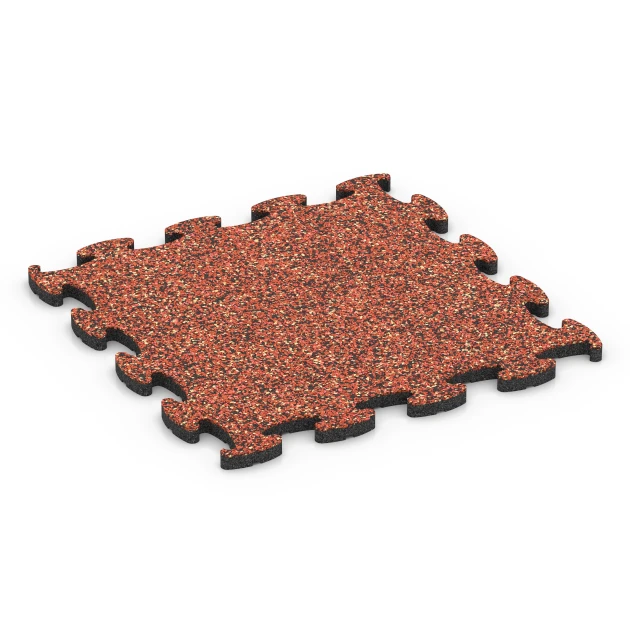

Playroom Floor Tiles Type XT are precision-cut tiles, 1.8 cm thick, with a wearing layer of through-coloured EPDM rubber granules. The tiles meet at tight joints, so the floor looks like a poured surface. The flooring feels pleasantly resilient underfoot and is slip-resistant and colourfast. It can be laid indoors and outdoors.
What is the flooring like to play on?
Whether building with blocks, playing with a toy kitchen or racing toy cars, children prefer to play on the floor. They can sit, kneel and crawl comfortably on the flooring. It feels warm under bare feet. Its grippy surface is slip-resistant. The resilient flooring dampens the sound of footsteps, jumping and dropped toys. This makes it suitable for playrooms, children’s bedrooms, living room play areas and nurseries, as well as terraces where children play.
What are the tiles made from?
The tiles have two layers with different functions. The upper wearing layer comes into contact with hands and feet. It is made from newly produced, through-coloured EPDM rubber granules. As a result, the tiles retain their colour even as the surface wears over time. The base layer is made from ELT granules, which are recycled rubber granules from end-of-life tyres. The base layer is manufactured at low density. This makes the flooring pleasantly resilient underfoot. The playroom flooring weighs around 14 kg per square metre. When first unpacked, the tiles sometimes smell of rubber. With good ventilation, the smell soon disappears.
How are the tiles laid?
The tiles are simply laid in place, without drilling, gluing or screwing. No tradesperson is needed. The substrate, such as screed, tiles, parquet or a timber floor, must remain load-bearing, stable and reasonably level. The tiles can also be laid over underfloor heating. Their rounded jigsaw interlock joins them together so that the edges do not lift. At the perimeter, the tiles are cut with a jigsaw or circular saw. If the children’s bedroom is later used for a different purpose, the flooring can be lifted and laid elsewhere.
How do you look after the flooring indoors and outdoors?
Crumbs, sand and craft scraps can be removed with a vacuum cleaner or broom. For damp mopping, use warm water and a neutral cleaner. In a nursery, the tiles can also be wiped with alcohol-based disinfectants as part of hygienic cleaning. In the garden or on a terrace, rain runs through the tiles. On an impermeable substrate, it runs beneath them and drains away down the slope. This prevents puddles from forming and allows the play surface to dry quickly. Frost does not harm the tiles.
Can I increase the floor height or order tiles cut to size?
Type XX functional tiles can be placed beneath the playroom flooring. They increase the build-up height and further reduce impact sound. To avoid cutting the tiles on site, draw the area using the laying planner on the WARCO website and send the DXF file to WARCO. For an additional charge, WARCO supplies the tiles cut to size and ready to lay.
Discount
Product Highlights
Characteristics
Product Details – Material and Structure
Comparative values
Rubber mats made from PU-bound rubber granules can have a characteristic rubber smell, particularly when new. Whether and how strongly it is noticed depends on the material composition and on individual sensitivity to odours.
With WARCO rubber coverings, the inherent smell decreases over time. On well-ventilated outdoor areas such as balconies and terraces, it dissipates quickly. Heat may temporarily make the smell more noticeable.
The smell can remain noticeable for longer in indoor areas, conservatories and other poorly ventilated spaces where ventilation is limited. To reduce the initial inherent smell, rubber tiles may be stored for several days before installation in a dry, well-ventilated place. During storage, air should reach as many tile surfaces as possible.
After installation, regular brief periods of thorough ventilation or cross-ventilation support air exchange. With correct use, no adverse health effects from WARCO rubber coverings are known.
Rubber tiles and rubber mats from WARCO are not harmful to health when used as intended. They are made from rubber granules bound with PU; the solvent-free PU binder cures fully during manufacture.
The rubber granules are predominantly recycled from end-of-life tyres (ELTs). The PAH content of ELT rubber granules may vary according to origin and batch; PAH means polycyclic aromatic hydrocarbons. Black ELT rubber granules contain carbon black, a fine industrial soot that gives the rubber its black colour. Surface abrasion may occur during use of rubber mats.
In two-layer versions, the wearing layer is made from newly manufactured EPDM, which is coloured throughout and free from harmful substances. The possible PAH variations associated with ELT rubber granules do not occur with EPDM. Versions with an EPDM wearing layer are particularly suitable for prolonged or intensive skin contact and for areas intended for babies. The relevant product description states whether a product has a two-layer construction.
A calibrated puzzle interlock without a bevelled edge is produced by cutting each rubber tile precisely to size from a larger blank. The blank is left to cure for several days before cutting.
Without a bevelled edge means that the tile edges are vertical rather than chamfered. The finished tile has only a minimal height tolerance.
In the usual pressing process, a rubber tile receives a bevelled edge, causing each joint to appear as a dark line across the surface. With vertical edges and minimal height tolerance, the tiles butt together accurately, leaving only a hairline joint. This hairline joint is visible in the laid surface only on close inspection, so the floor covering appears almost seamless.
Thermal insulation from floor coverings made from rubber granules is supplementary and varies with the product design and thickness; it does not replace the thermal insulation required within the building structure. Across the WARCO range, thermal conductivity is approximately 0.07 to 0.16 W/(m·K), depending on the product line. By comparison, EPS insulation materials achieve approximately 0.032 to 0.040 W/(m·K), so they provide substantially greater insulation than floor coverings made from rubber granules at the same thickness.
Thermal conductivity and thickness determine the thermal resistance of a floor covering: lower thermal conductivity produces greater thermal resistance, as does a thicker covering. On a cool mineral substrate, a dry covering made from rubber granules draws heat from the foot more slowly and therefore feels less cold. With porous outdoor coverings, thermal insulation decreases when wet because water conducts heat more readily than the air within the pores.
For the thermal insulation of flat roofs and ceilings, the performance of the complete roof or ceiling build-up is decisive. With underfloor heating, the thermal resistance of the covering slows heat output into the room; the thicker the floor covering, the greater this slowing effect.
Impact-absorbing flooring made from PU-bound rubber granules reduces impact sound and the structure-borne sound it generates. The elastic floor covering absorbs impacts and reduces their transfer to the substrate.
Impact sound occurs when walking, jumping, moving furniture or setting down weights cause a floor or storey slab to vibrate. These vibrations travel through solid building components as structure-borne sound and can become audible as airborne sound in other rooms.
Structure-borne sound can also be caused by machinery and by installations fixed to the building. It may have causes and transmission paths other than impact sound, so it cannot be reduced by a floor covering alone.
Under load, a floor covering made from rubber granules deforms elastically. This deformation transfers the load to the substrate less abruptly, reduces the peak force and, through the covering’s internal damping, further weakens the remaining vibrations.
Sound-insulation tiles reduce excitation of the substrate from footsteps, jumps and impacting objects. Where higher requirements apply, multi-layer flooring systems with functional layers of differing elasticity can further reduce impact transmission. Their effectiveness depends on the properties of each layer, the load applied, and the existing floor or slab structure.
Rubber mats can be laid over underfloor heating. Mats made from rubber granules increase the thermal resistance of the floor build-up, so heat from the system passes through the covering more slowly. The thicker the mats, the more pronounced this effect becomes; the heat is not lost, but released into the room later.
Underfloor heating systems already respond slowly and are designed for steady operation. During normal operation, the delay caused by rubber mats is barely noticeable, although it takes longer for the new target room temperature to be reached after an adjustment to the setting.
Rubber granule tiles and rubber granule mats are elastic floor coverings composed mainly of bound rubber granules from end-of-life tyres. ELT stands for end-of-life tyres, which are shredded and ground into rubber granules. The rubber content of these tyres consists mainly of SBR, or styrene-butadiene rubber, and NR, or natural rubber.
These rubber granules are processed with a binder under pressure in presses. The binder may be colourless or coloured, and polyurethane is normally used, creating PU-bound rubber granules.
Some rubber granule tiles and mats consist entirely of PU-bound ELT rubber granules, while others also have a top layer of EPDM granules. This EPDM layer forms the wearing layer. EPDM stands for ethylene-propylene-diene rubber, a modern synthetic rubber with particularly high UV resistance that is generally coloured throughout.
Before fitting rubber flooring indoors, the tiles should be cleaned, dried completely and aired. The substrate must be level, load-bearing, clean and dry.
New tiles made from rubber granules may carry residues of manufacturing release agents and fine rubber dust. Before installation, it is advisable to clean the tiles outdoors with warm water; a mildly acidic cleaner suitable for rubber and a scrubbing brush can assist with cleaning. A pressure washer may be used from a sufficient distance. The tiles must then dry completely.
If cleaning before installation is not possible, the residues can be removed after fitting by repeatedly damp-mopping with warm water. New tiles have a characteristic odour which decreases over time; airing them outdoors for several days and regularly ventilating the room during the first few weeks will help it dissipate more quickly.
Before installation, the tiles should have reached room temperature. The installation instructions for the relevant product and installation system must be followed.
Installation of rubber tiles requires a load-bearing substrate designed to drain water. The tiles are water-permeable, so rainwater passing through them must infiltrate into the substrate or, alternatively, be discharged by a fall.
In central Europe, the suitable installation temperature is between 5 and 17 °C. Direct sunlight should be avoided, as it can cause tiles to heat up to differing degrees; throughout installation, all tiles should have an even temperature. Rain during installation does not harm the tiles, but soaked tiles must dry completely before installation.
General installation instructions must be followed, along with the requirements for the relevant product and installation system.
New rubber tiles may carry harmless release-agent residues from manufacture. Weathering washes these residues away; if required, they can be removed with water and a brush or with a pressure washer. The typical rubber smell of new tiles is harmless and reduces noticeably after a short time outdoors.
The appropriate cleaning method for rubber tiles within buildings depends on the area in which they are used and the surface texture.
In private homes, rubber brooms, vacuum cleaners or mops are usually sufficient for regular maintenance. A neutral cleaner suitable for rubber should be used. A mildly acidic cleaner may be used for mineral deposits.
Water-permeable rubber floor coverings must not be flooded where the substrate does not provide suitable drainage.
For larger or commercial areas, a scrubber dryer with a cylindrical brush is recommended. The brush type and contact pressure of the scrubber dryer must be matched to the floor covering.
Within buildings, a pressure washer is only suitable for stables or appropriately equipped halls where adequate drainage is available. It can also remove stubborn dirt from the textured tile surface.
