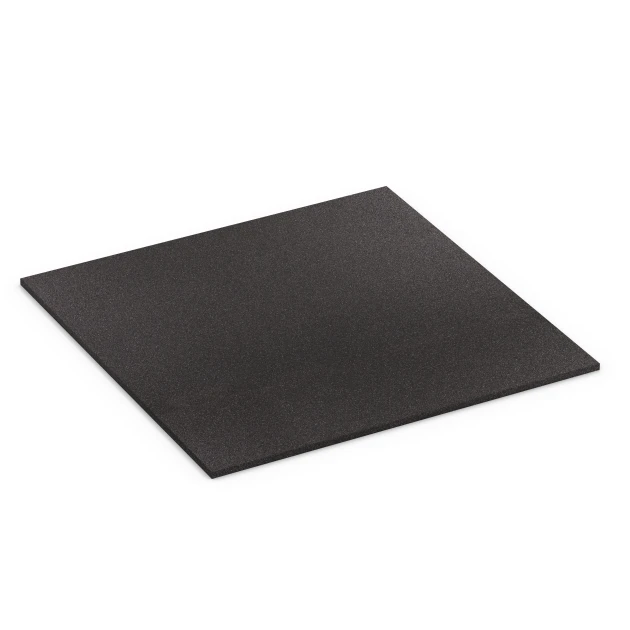

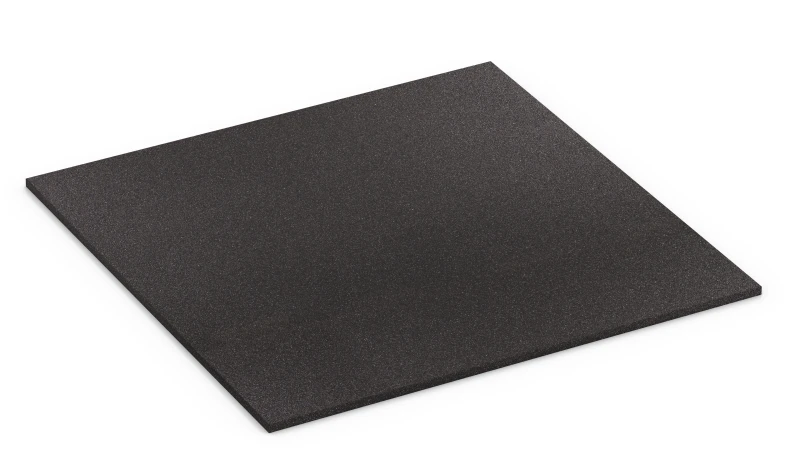

Base Layer Class 1 XX "Anthracite"

£34.20 / Piece
  • plus shipping costs

    /
  • Ready to ship

    in approx. 3-4 weeks – production yet to start
  • £31.64 / 0.93 Piece / m²
  • (18.50 kg /  Piece)

EAN: 4251469366558 | Item no.: 6655

Base Layer Class 1 is a functional underlay panel for multi-layer floor systems made from rubber granules bonded with polyurethane. It is used in floor build-ups that damp vibrations and absorb impacts. Each layer has a defined task. The top panel forms the wearing surface, while the functional panels beneath provide vibration and shock absorption, build-up height and load-bearing capacity. Sandwich constructions with two or more layers are possible. The functional panels come in three damping classes, ranging from very high damping performance to firm yet resilient support. Class 1 is the firm yet resilient class with the highest density and load-bearing capacity. Its high density means that it is intended only for indoor areas and sheltered outdoor areas.

What does this shock-absorbing underlay do?

Base Layer Class 1 takes static loads and, in particular, dynamic loads, such as those created when a heavy barbell is dropped. During an impact, the kinetic energy must be dissipated over a distance as the panel deforms. The panel is compressed, slows the load and converts part of the energy into heat. The panel must compress through a sufficient distance to slow the load. If a layer yields too readily, it reaches the limit of its compression before the load has slowed down. The layer then bottoms out, subjecting the substrate to much higher peak impact forces. Base Layer Class 1 has a density of 950 kg/m³, the highest of the three classes, and provides the greatest resistance to compression. It can therefore take high dynamic loads without bottoming out and spread the force over a larger area. This reduces peak impact loads on the screed and floor slab and limits the transfer of structure-borne sound.

Where is this underlay used?

Base Layer Class 1 is used where high static and dynamic loads occur. Typical applications include gyms and strength-training areas with barbell racks, strength-training machines and drop zones. It is also suitable for indoor areas where vibrations from heavy equipment or impacts from loads striking the floor need to be absorbed. Almost all WARCO floor coverings can be used as the wearing surface, as can concrete and natural stone slabs.

Why use several layers rather than one thick panel?

Base Layer Class 1 can be combined with functional panels in Classes 2 and 3. This creates a progressive build-up that distributes damping and load-bearing capacity across several layers. For example, a lower Class 3 layer increases shock absorption. The Class 1 layer above spreads the load over such a large area that the more yielding layer does not bottom out. Damping, load-bearing capacity and build-up height can therefore be matched to the requirements. A sandwich construction is also more durable and economical than one thick panel, because only the top panel needs replacing when it becomes worn.

How is Base Layer Class 1 installed?

Base Layer Class 1 is laid loose, without mortar or adhesive, edge to edge and with staggered joints. In multi-layer constructions, the joint pattern is also offset from one layer to the next, so that every joint lies over an unbroken panel. The build-up height is determined by the 1.8 cm and 2.8 cm panel thicknesses used and the number of layers. Base Layer Class 1 can be cut with a circular saw or a jigsaw.

Product type XX (square format | staggered installation | drainage channels)
Price and discount
0 m²

Product Highlights

Characteristics

Harmful substance limits met

Meets EU limits for harmful substances. Initial rubber odour diminishes.

Indoor and sheltered outdoor use

For indoor and sheltered outdoor areas. Avoid standing water and prolonged saturation.

Efl (Cfl-s1 on request)

Normally flammable. Cfl-s1 available on request.

Product Details – Material and Structure

Comparative values

What is the difference between XT tiles and XX functional tiles?

An XT tile can be laid directly as a floor covering or on an underlay of XX functional tiles. Depending on the configuration, the floor build-up is single-layer, two-layer or multi-layer.

The XT tile is made entirely from recycled tyre rubber granules (ELT), or has a body of these granules with a permanently bonded top layer of coloured EPDM rubber granules. A three-dimensional interlock is cut into the tile edges: during installation, the teeth of one tile engage in the matching recesses of the next, creating a continuous tiled surface. XT tiles are 1.8 or 2.8 cm thick and come in three density grades: elastic, standard and stable.

The XX functional tile is also made from recycled tyre rubber granules (ELT). Beneath the XT tile, it spreads point loads, damps vibrations and impact sound, increases shock absorption and adds to the overall build-up height. It is likewise 1.8 or 2.8 cm thick and is offered in three damping classes. The functional tiles are laid edge to edge. In a multi-layer construction, the tiles should be offset from one layer to the next so that the joints do not align.

An XT tile combined with one or more functional tiles forms a sandwich construction. The thickness and density of the XT tile are selected for the intended application. In a sandwich construction, the thickness and damping class of the functional tiles are selected as well. Tiles of different densities can also be combined in a multi-layer construction to match the properties of the floor build-up to the application.

How can multilayer rubber tiles be adapted to use?

Where rubber tiles are laid in several layers, the load-bearing capacity, shock absorption and overall thickness of the floor can be tailored to the intended use. The XT surface tile forms the top, visible layer and determines abrasion resistance. One or more XX functional tiles sit beneath it. Both XT surface tiles and XX functional tiles are made from PU-bound rubber granules and are available in a range of thicknesses and densities.

The choice and combination of the two tile types sets the overall thickness, load-bearing capacity and shock absorption of the system, allowing it to be tailored to the application. Systems of the same overall thickness can offer different levels of shock absorption. In playgrounds, a system designed for shock absorption can offer a higher critical fall height.

In weight-training areas, a shock-absorbing system can dissipate some of the impact energy. Indoors, it can improve impact sound insulation and reduce the transmission of structure-borne sound. It can also improve vibration damping beneath machinery and plant, or in vibration-sensitive areas.

Which rubber tile class cushions most and carries most?

A rubber tile’s class indicates how much cushioning it provides underfoot and how much weight it can support: class 1 supports the most weight, class 3 provides the most cushioning, and class 2 falls between them on both counts. The more cushioning a tile provides, the more it gives under load.

Class 1 gives the least under load because it has the highest load-bearing capacity and provides the least cushioning. It spreads heavy loads applied at a single point across its surface and reduces vibration. It is for indoor use only.

Class 2 can be used indoors or outdoors. It has moderate load-bearing capacity and cushioning, offering a balance of support and give underfoot. It is typically laid beneath patio and balcony coverings or paving slabs, and in entrance areas.

Class 3 has the lowest load-bearing capacity and provides the most cushioning. It gives the most under load and absorbs the most impact energy, so it is suitable where a springy surface and noise reduction are needed. It can be used indoors or outdoors. All three classes are available in two sizes, 52 × 52 cm and 104 × 104 cm, and two thicknesses, 1.8 cm and 2.8 cm.

Can a 2 cm rubber tile support a weight rack?

A rubber tile at least 2 cm thick will support a weight rack. A two-layer floor will also support one, provided a Class 1 load-bearing tile forms the base beneath the rack.

Load-bearing capacity is the first consideration for a weight rack. The rack’s static load is concentrated at just a few points of contact with the floor. Setting down or dropping a weight also creates a brief impact load over a small area. The flooring must carry the sustained load without excessive deflection, while cushioning impacts and reducing vibration and impact noise transmitted to the subfloor.

A single-layer floor therefore needs a load-bearing rubber tile at least 2 cm thick. Fitness Performance Impact gym flooring, which is 3 cm thick, is one example. Tiles 1 or 1.5 cm thick are not sufficient to support the constant weight of a weight rack.

In a multi-layer floor, the layers can have different densities and serve different purposes. A Class 1 tile forms the load-bearing base but is intended for indoor use only. Above it, the visible Wearing layer is either a surface tile or firm gym flooring such as Fitness Performance Elite. The layers can be combined to provide load-bearing capacity and cushioning suited to the location and its use.

Can functional tiles be used outdoors beneath rubber tiles?

Functional tiles in Classes 2 and 3 can be used outdoors beneath a rubber tile covering, whereas Class 1 tiles are intended for indoor use only. The class determines the load-bearing capacity and cushioning of the floor build-up.

Within the floor build-up, Class 2 combines load-bearing capacity with resilience underfoot and is commonly used beneath terrace and balcony coverings and paving slabs, and in entrance areas. Class 3 is used where impact cushioning is the main requirement, for example beneath playground surfacing.

Both types of functional tile are made from rubber granules recovered from end-of-life tyres (ELT), withstand frost and are permeable over their whole area. Their underside has square bearing pads with broad, shallow drainage channels, allowing rainwater to drain away beneath the covering on impermeable substrates rather than collecting within the build-up.

How high can an XT system build-up be?

An XT system can be as little as 1.8 cm thick. There is no maximum thickness, as any number of tiles can be stacked. Whatever the overall thickness, the XT surface tile is always on top. It can be used on its own, without a functional tile, or placed over one or more XX tiles that form the functional layers.

Both the surface tile and the tiles used for the functional layers are available in thicknesses of 1.8 cm and 2.8 cm. Any number of functional tiles can be combined, in either thickness. The overall thickness is the sum of the thicknesses of all the tiles in the stack. Using both 1.8 cm and 2.8 cm tiles allows the overall thickness to be adjusted in smaller increments.

Different combinations of tiles can produce the same overall thickness, but may differ in load-bearing capacity and cushioning. The choice of combination depends on how the finished surface will be used.

Can different rubber tiles be layered in a sandwich?

Different rubber tiles can be combined in a layered system. Type XX tiles are available in three cushioning grades; any number can be used in any order beneath the surface tile. Each of these layers can have its own cushioning grade, density and thickness. The visible surface is formed by a type XT surface tile or another surface tile, whose density and elasticity need not match those of the tiles beneath it.

The order of the layers depends on how the area will be used and the performance required of the layered system. The layers are selected and arranged to balance shock absorption, load-bearing capacity and how point loads are spread. Two systems of the same overall height can therefore differ in load-bearing capacity, elasticity and damping.

Should joints between layers of rubber tiles be staggered?

Where rubber tiles are laid in more than one layer, the joints in each layer should be staggered rather than positioned directly above one another. In a multi-layer build-up, each layer is offset from the one below so that the tiles in the upper layer bridge the joints in the layer beneath.

Staggering the joints in this way avoids joint lines running straight through the build-up and helps to keep the finished surface even. Outdoors, it also leaves no continuous path for vegetation to grow up from the ground beneath.

Can rubber tiles be laid loose in layers?

Where rubber tiles are installed in more than one layer, the layers should not be bonded to one another but loose-laid.

PU-bound rubber granules expand and contract with changes in temperature and moisture, swelling in warm conditions and shrinking in the cold. With loose-laid layers, each layer can move independently of the others.

The interlocking profile of the tiles in the top layer, together with the weight of the whole construction, helps hold it in place. If maintenance or repair work is needed later, the layers can be lifted one at a time, so that each can be checked and replaced where necessary.

What can be replaced in a sandwich system?

In a sandwich system, when the surface of the top tile becomes worn, usually only that tile needs replacing. The tiles beneath it generally last much longer and need replacing much later than the top tile.

The Wearing layer is subject to abrasion as people walk, exercise and play on it. The tiles beneath are not exposed to direct sunlight or surface abrasion, so in most cases they can remain in place and be reused.

Reusing the lower tiles and replacing only the top tile costs considerably less than replacing the entire floor covering. A new top tile in a different colour also allows the surface colour to be changed without relaying the entire floor.

Can different tile sizes be combined in a floor build-up?

Different tile sizes can be combined in a floor with more than one layer. Surface tiles and functional tiles are designed to be used together in this way, rather than stacked with their joints aligned.

Allowing for joints, each surface tile occupies 44.6 × 44.6 cm or 97.1 × 97.1 cm. Functional tiles, by contrast, come in 52 × 52 cm or 104 × 104 cm sizes and are laid with butt joints, without interlocking edges. Their nominal dimensions are therefore also the dimensions used to calculate coverage.

The layers are laid to different grids so that their joints are offset as intended. Joints in the upper and lower layers never align to form a continuous joint through the floor.

The number of tiles must therefore be calculated separately for each layer. The floor area to be covered is the same for both, but the number of tiles required depends on the coverage dimensions of each tile type.

Can rubber granule mats be cut with a jigsaw?

Rubber granule mats of any thickness can be cut with a jigsaw or a circular saw. A circular saw is suited to straight cuts, while a jigsaw is suited to curved cuts and cut-outs. PU-bound rubber granules can be worked in much the same way as wood, provided both saws are guided steadily with an even feed rate.

For particularly thick rubber mats or large sections to be cut, a reciprocating saw or chainsaw may be easier to handle than a guided circular saw. Thick impact-absorbing surfacing tiles also do not require a special machine: a coarse-toothed wood saw blade or a rubber saw blade is suitable. A coarse tooth pattern and moderate speed keep frictional heat low, allowing fitness tiles and patio tiles made from rubber granules to be cut cleanly.
